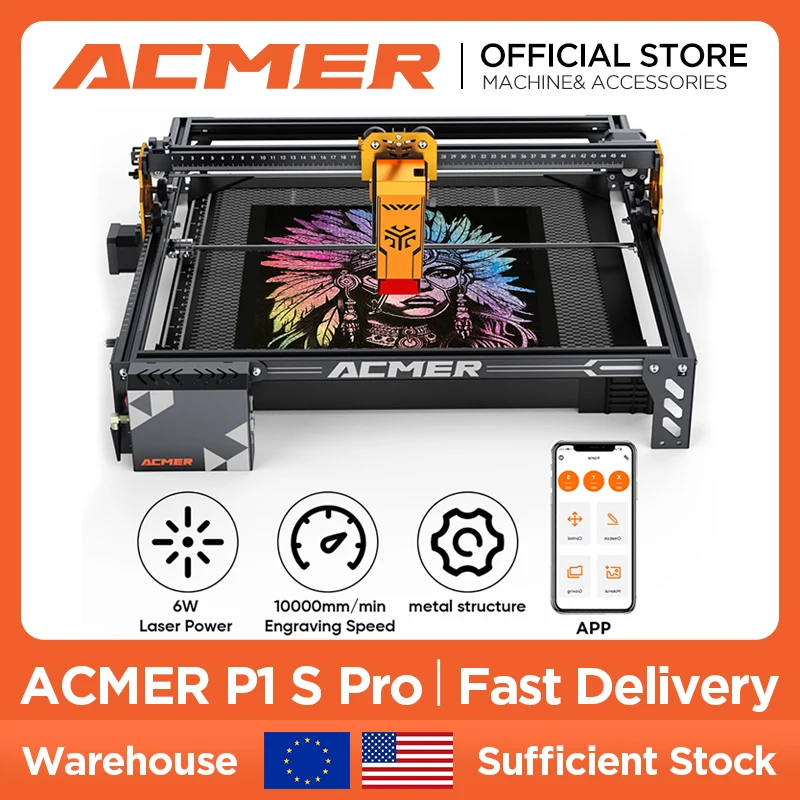

ACMER P1 S Pro 6W Laser Engraving Machine With Honeycomb Board Ultra-thin Laser Acrylic Engraver Cutting Machine 380x370mm Area

SKU : 1005008105671124

Price range: $413.31 through $642.30

  • Hign-concerned Chemical: None
  • Engraving Area: Other
  • Laser Power: Other
  • Certification: CE
  • Is Smart Device: YES
  • Origin: Mainland China
  • Certification: ce
  • Brand Name: ACMER
  • Model Number: P1 S Pro 6W
  • ACMER Model: P1-S-Pro-6W
  • Laser Type: Diode Laser
  • Engraving Area: 380*370mm
  • Engraving Speed: 10000mm/min
  • Engraving Precision: 0.01mm
  • Power: 72W DC 24V/3A
  • Laser Output Power: 6000mW
  • Focal Length: 23mm
  • Wavelength: 455nm(±5nm)

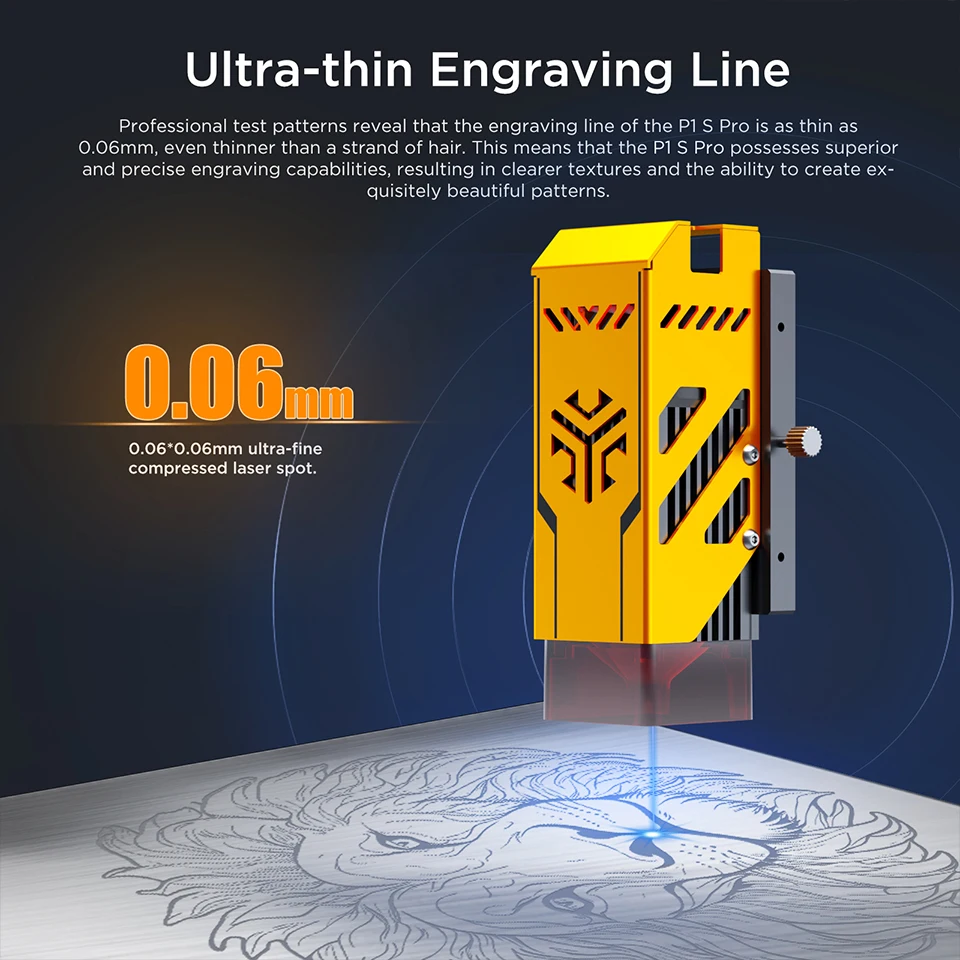

  • Laser Spot: 0.06mm
  • Operating Temperature: 0-60°C

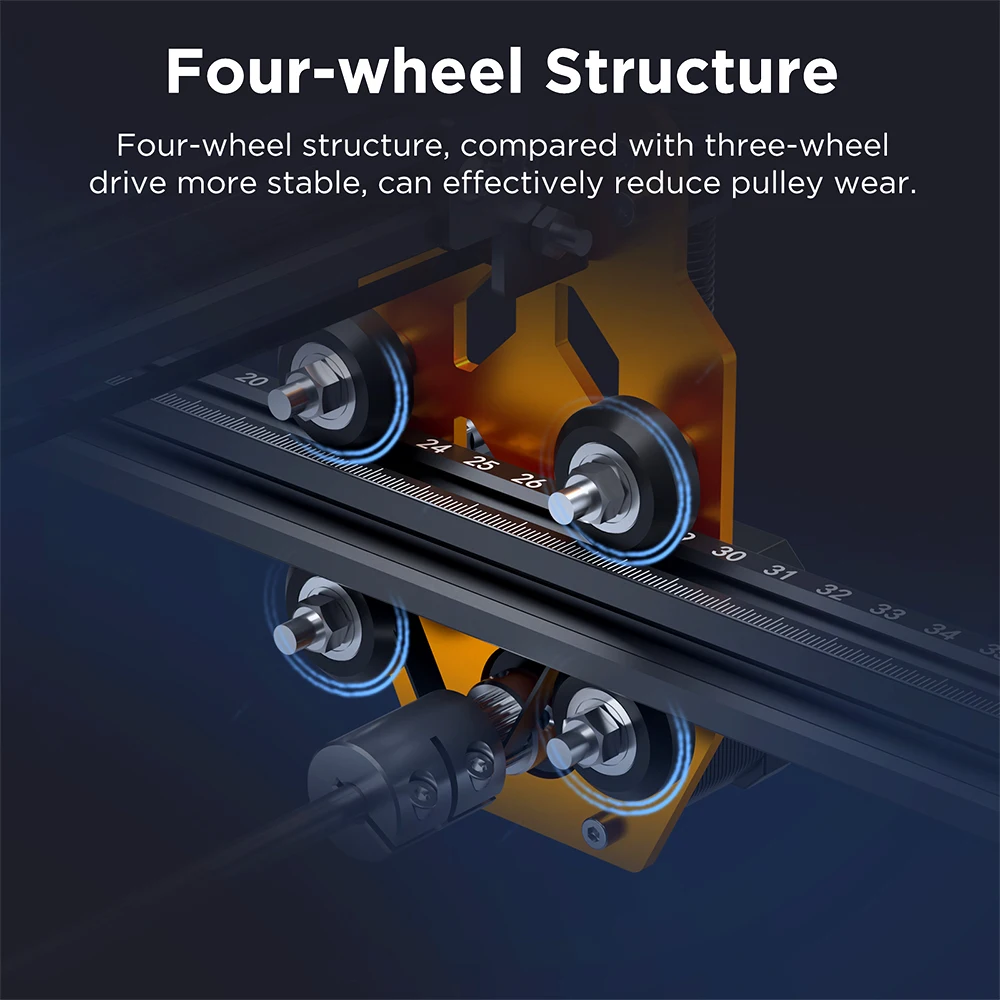

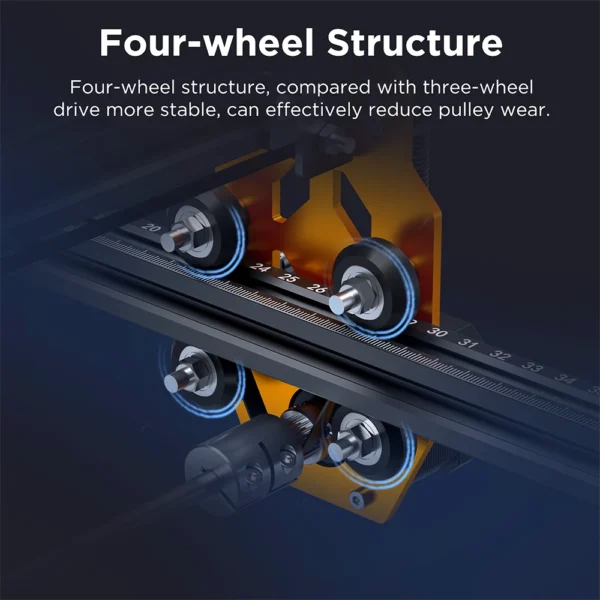

  • Movement Structure: Pulley Drive, Four-wheel Structure
  • Communication Method: USB/APP/TF Card
  • Air Assistance: Support
  • Rotation Axis Output: Support
  • Offline Engraving: Support
  • Status Indicator: Support
  • WiFi Module: Support
  • Engreving Materials: Support
  • Type 1: CNC Laser Engraver
  • Type 2: CNC Router
  • Type 3: Carpentry Tools
  • Type 4: Cnc Machine
  • Type 5: laser engraving machine
  • Type 6: Laser Engraver
  • Type 7: Laser Cutting Machine

MORE EFFICIENT LASER BEAM SHAPING TECHNOLOGY: The P1 S Pro utilizes the latest 6W Laser Beam Shaping Technology diode laser with an ultra-fine 0.06mm laser focus, resulting in a thinner beam with a longer effective energy range for cutting wood up to 10mm thick, acrylic up to 6mm thick, engraved ceramics and stainless steel.

EASY TO ASSEMBLE CONSTRUCTION: Aluminum extrusion design, dual Y-axis motors for more stable operation and improved engraving accuracy. 60% pre-assembly rate, 30 minutes to complete the assembly.

Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to quickly measure the size of the engraved object.

Strong compatibility: Support cell phone APP control, wifi connection, USB connection, offline use, the machine is compatible with LaserGRBL, LightBurn and many other mature engraving software, support PWM mode engraving, support Windows, Mac system, engraving file format support JPG, PNG, SVG, G-code, NC, BMP and so on.

Limit Switch: Both X-axis and Y-axis are equipped with limit switches to protect the laser engraving area, improve safety and precision, and provide you with convenient reset options.
