Price range: $985.77 through $1,149.51
Welcome to Ortur Official Store, please note:
Why Algolaser?
Algolaser is a new brand of Ortur’s founder, Justin Tan!
We believe that laser engraving is the best tool for product development and low volume production, it has massive potential to change a lot of things, we would make our life for it!
The strongest 22W Cutting Monster!
1.Brand:Algolaser
2.Product:Algolaser Alpha 22W
3.Machine Power :96 W
4.Laser Power Output:22W
5.Laser Pot:0.08*0.07mm
6.Working Area:400*400mm
7.Connect:Wifi (2.4G), TF Card, USB
8.Control software:LaserGRBL/Lightburn/Mobile App
9.Can Cut :45mm Light Wood /45mm Dark Acrylic /12mm MDF /
20mm White Oak
10.One Pass Cut:30mm pinwood/10mm thick black acrylic board/8.7mm bamboo/5mm MDF
11.Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
12.Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge, leather, MDF
13.Warehouse : China /Russia/Czech Republic/Spain/United State warehouse. Priority in shipping from overseas warehouses
Support shipping from China, about 7-15 days by delivery.
Welcome to order!

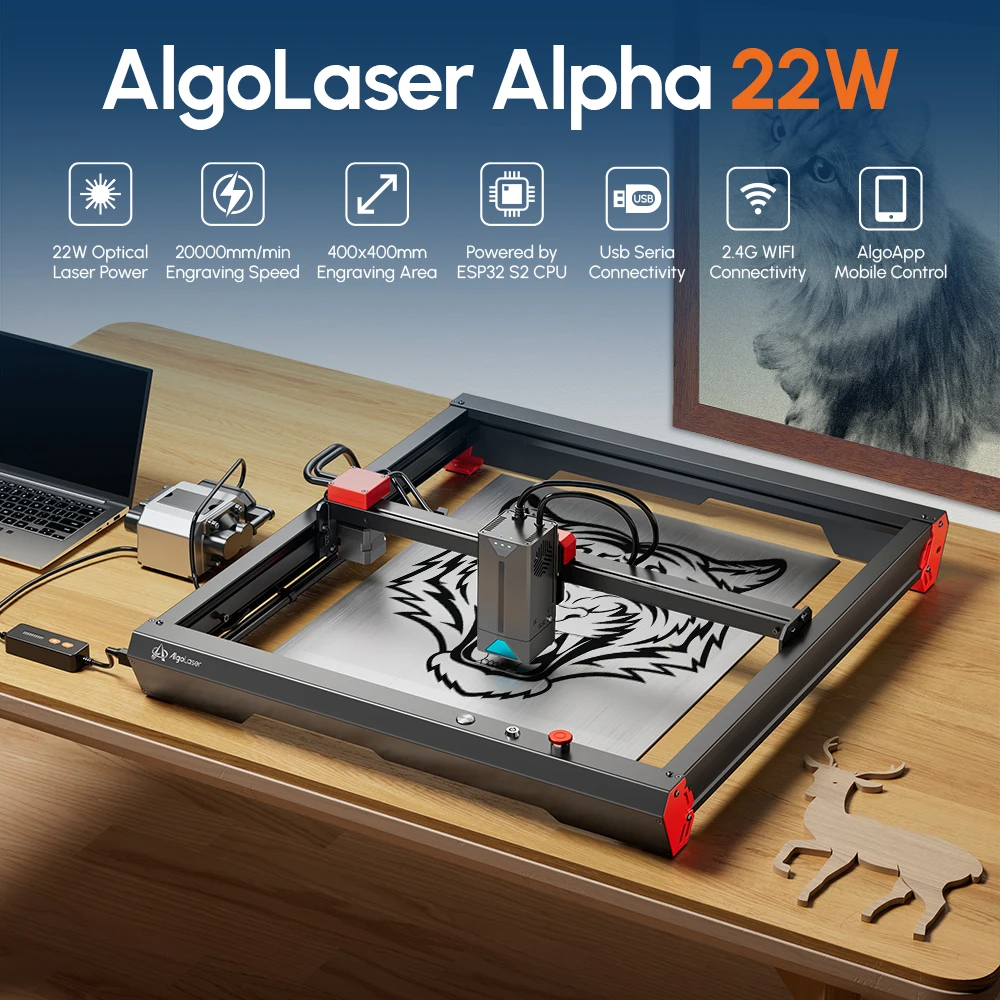

Algolaser Alpha 22W
Makes Everyone a Master Crafter
22W Laser Module High-strength cutting of various materials
Algolaser adopts the most advanced spot compression technology based on physical optics and innovates new laser coupling methods, which can penetrate 100+ materials and even cut 45mm black acrylic. More power, stronger cutting ability, and faster speeds are implemented to create a new generation of intelligent laser engraving machines to satisfy your various needs.

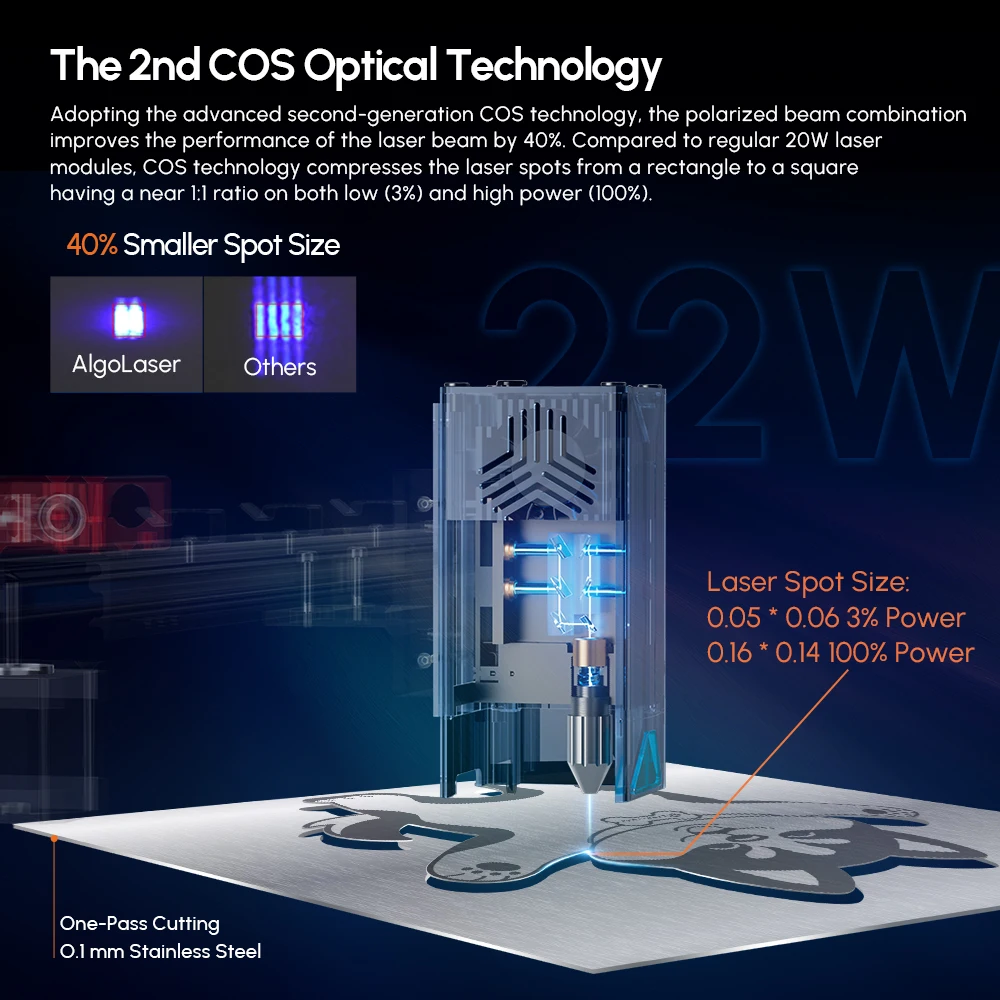

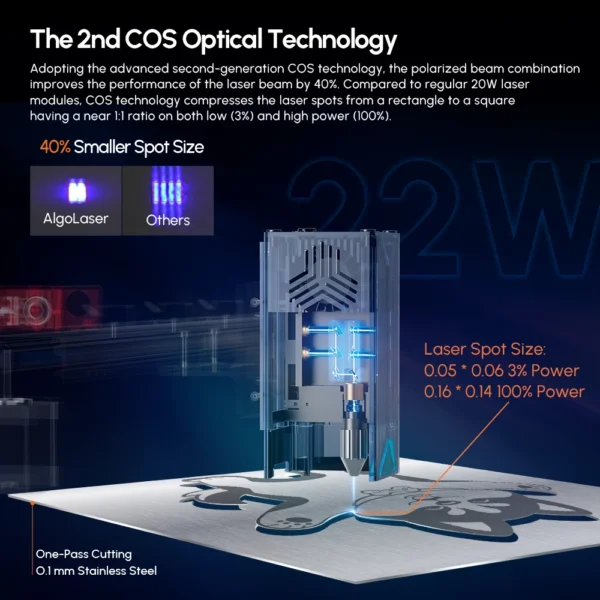

New Generation COS optical technology
With latest COS optical technology, the alpha laser 20w’s spot area is reduced to 0.08 × 0.07mm for fine engraving, with the engraving/cutting accuracy being reduced to within 0.004 inches. The cutting ability is also greatly increased, allowing this machine to engrave metal, stainless steel, ceramics, glass, and more.
In this 20-22W field, it is a cutting monster.

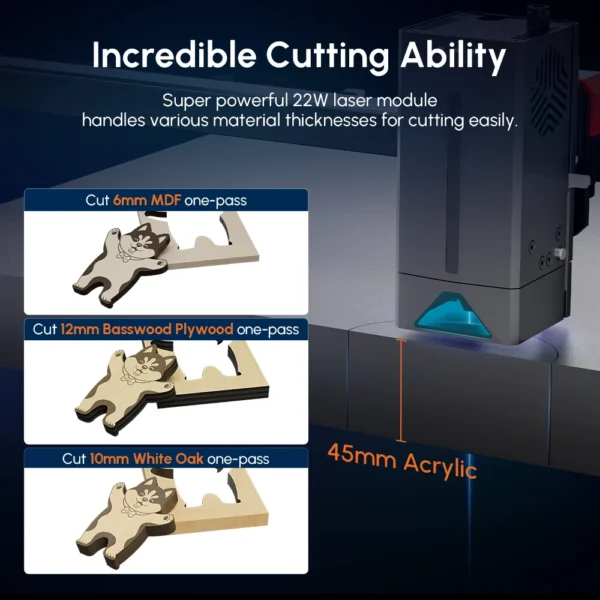

The Strongest 22W Cutting Monster
Can Cut :45mm Light Wood /45mm Dark Acrylic /0.1mm Metal/12mm MDF/20mm Paulownia Plank/20mm White Oak
One Pass Cut:18-20mm thick wood board/10mm thick black acrylic board/5mm MDF/8.7mm Bamboo
Add some color to your artwork-500+ Colorful Engraving on Metal Material
Algolaser breaks the Metal engraving technical difficulties, which will no longer be limited to black, gray, and brown. As stainless steel is heated by the laser, colored oxides are generated on the surface depending on the defocus amount, pulse frequency, and other appropriate parameters, expanding your color palette to 500+ colors that will take your creativity to the next level. Use the correct parameters to let the laser bring your metal creations to life.
Smart Limit Switch Design：

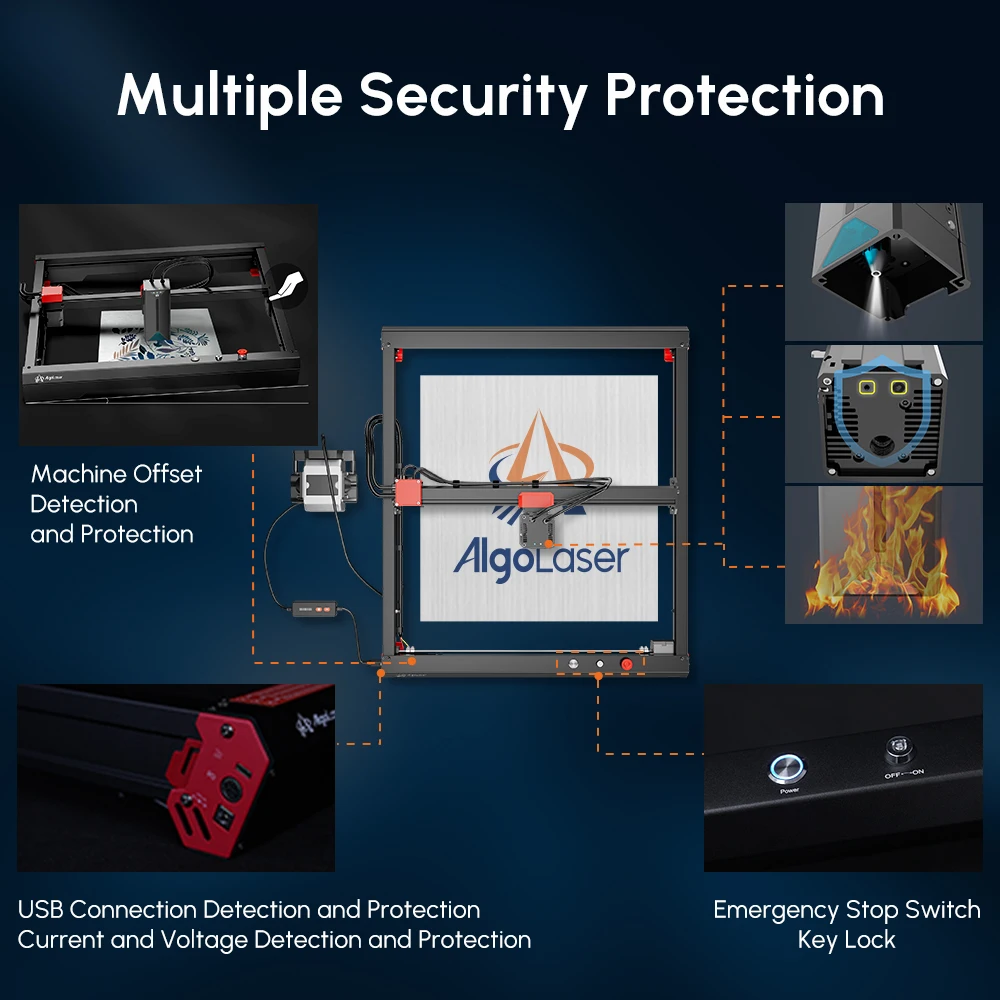

Limit switches are installed on both the X axis and Y axis.When the laser travels to the maximum size location,the limit switchwill be automatically triggered to protect the laser from crashing.
Make your money with Algolaser!
Machine:
1 x Front Assembly
1 x Left Y-axis Assembly
1 x Rogjt Y-axis Assembly
1 x Rear Panel Assembly
1 x X-Axis Assembly
1 x Motor Extension Shaft
17x M4X12 Screw
2 x M4X16 Screw
1 x M2.5 Allen Key
1 x M3.0 Allen Key
1 x Machine Key Set
1 x USB Cable
2 x Coupling
1 x Power Cable
1 x Laser Goggle
1 x Power Adapter
1 x Brush
Laser Module:
1 x LB-20A Laser Module
1 x Laser Shield
1 x Replacement Nut
1 x Lens Tool
1 x Air Assist Nozzle
1 x Replacement Lens
1 x Replacement O-Ring
1 x Lens Finger Guard
Consumable:
1 x Plywood (340220x3mm)
1 x Acrylic (175×122.5x3mm)
3 x Metal Card (86x54x0.2mm)
Package Includ:
1pcs Alpha 20W with Air Assist Kit
Features:
1. 【Super High 22W Optical Power】: The most advanced COS technology improves the performance of the laser beam by 40% and compresses the laser spots from a rectangle to a square having a near 1:1 ratio, allowing cut 30mm pine board/10mm black acrylic board/5mm MDF and even 0.1mm stainless steel sheet at one time. can easily cut 45mm thick wood and 45mm thick black acrylic with multiple operations;
2. 【400MM/S-Performance increased by 40%–80%】: Dual-core CPU 32-bit motherboard,8MB RAM, 8MB storage memory, and a built-in 32GB SD card, support LightBurn G-code Cluster model. 7.5X Faster Actual than other brands, Performance Data authenticity and reliability. We welcome all users to verify it.
3. 【Algolaser’s self-developed mobile phone APP】: Algolaser’s self-developed mobile phone APP is now available in major Android application markets and Apple APP store (The APP is downloadable via scanning the QR code from the manual as well).
4.【Upgraded Laser Engraving with Air Assist System】Equipped with an air assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
5.【Solid and easy installation structure design】: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 20-30 minutes.
6.【Wide compatibility】: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAC system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
7. 【Support offline engraving】: Algolaser Alpha 22W configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer. Connections: Wifi (2.4G), TF Card, USB
8. 【280 different grayscale 】:Makes the engraving more than black only: According to the different grayscale information from the picture the laser energy is automatically adjusted to achieve the finer contrast of the finished project as well as more natural transition between colors
9.【Colorful Engraving on Metal Material 】Support 500+ colors Metal Colorful Engraving.As stainless steel is heated by the laser, colored oxides are generated on the surface depending on the defocus amount, pulse frequency, and other appropriate parameters, expanding your color palette to 500+ colors that will take your creativity to the next level.
10.【Replaceable protective lens】:Adopts innovative replaceable lens, greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from Algolaser.
11. 【Algolaser New Features】

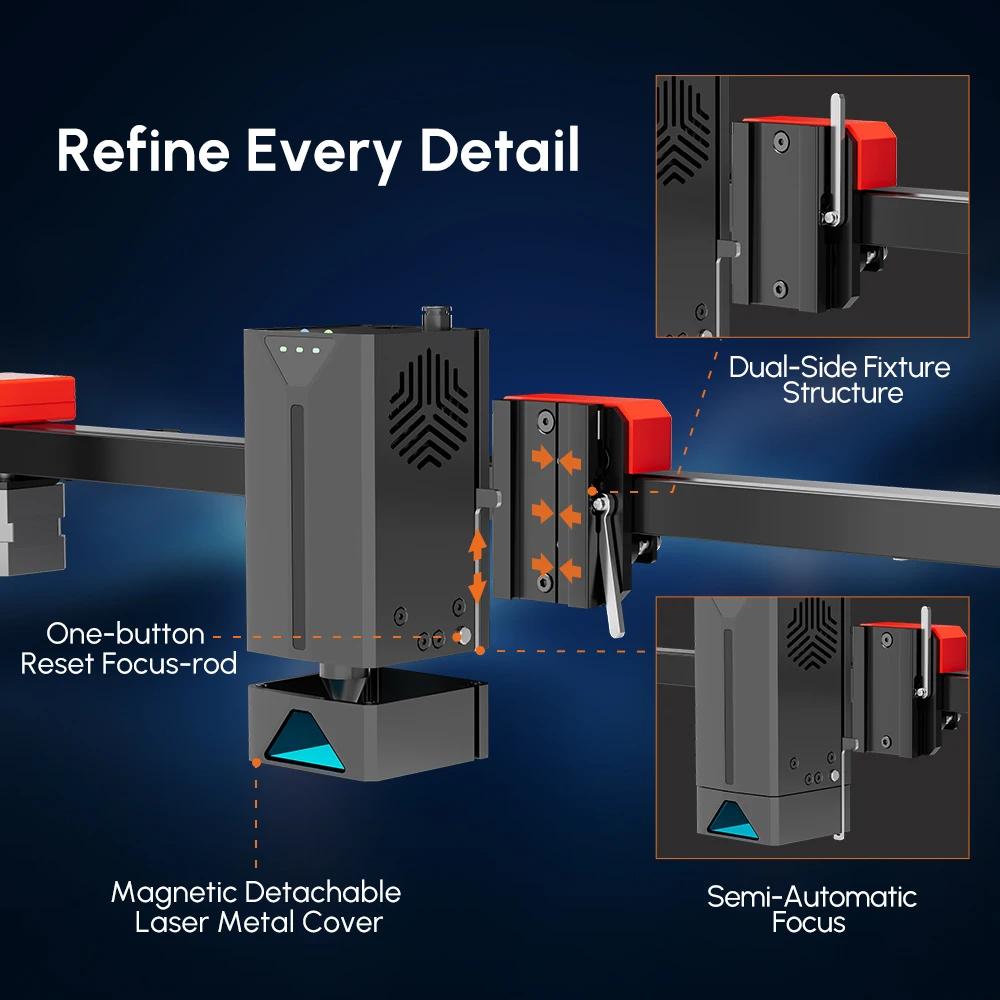

Laser Fixture: A revolutionary self-developed fixture, providing enhanced stability compared to single-point fixtures.
Spring-loaded Mechanical Focus:Innovative patented design for instant rebound, ensuring pristine engraving results.
New Nylon Rollers:7*24h non-stop operation with unparalleled durability, outlasting regular rollers by 5 times.
Welcome to Ortur Official Store, we dedicated to offering you laser engraving machines with Fast Delivery, Reliable Quality and Affordable Price. We have lots of inventory in Russian, Czech republic, Spain, United States and China warehouse, about 3-7 Business Days Fast & Free Shipping. And we are original Ortur manufacturer in China, you could rely on us for the consistent quality and service!
Notice:
● Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
● This product is not recommended for industrial cutting due to its high engraving speed.
