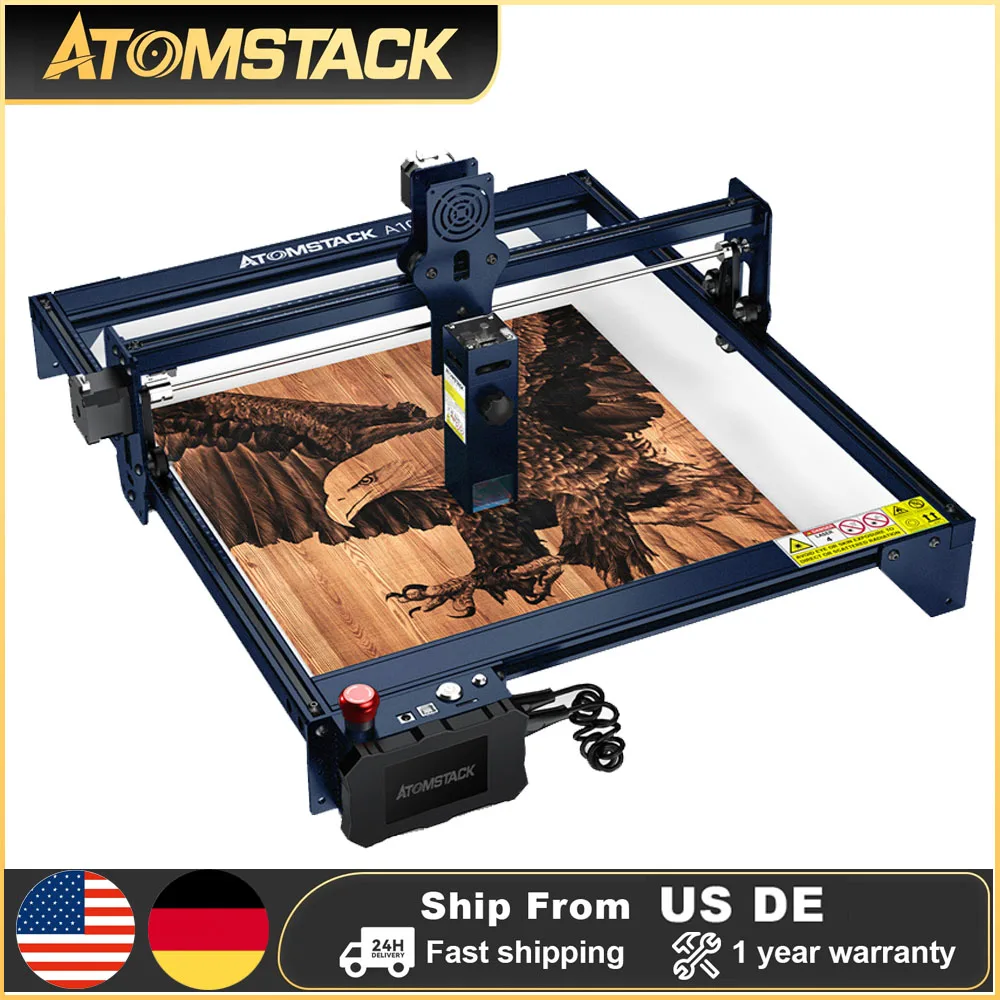

AtomStack A10 Pro 50W Laser Engraver 10W Optical Power Fixed-Focus CNC Offline DIY Metal Engraving Wood Acrylic Cutting Machine

AtomStack A10 Pro Laser Engraver Highlights

*AtomStack A10 PRO is an eye-protecting laser engraving machine with a dual laser power of 10W. It has an engraving area of 410x400mm and an all-aluminum alloy structure, which can be installed quickly. A10 Pro supports engraving materials including metal, 304 mirror stainless steel, high-energy wood, CNC, wood, slate, etc. It is a high-power, high-energy laser cutting equipment, and supports offline engraving. A10 Pro has an emergency stop button , so that it can achieve a safe 150W CO₂ laser engraving effect.

1. The New Filter Panoramic Glass Eye Protection Design: The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.

2. Solid and Easy Installation Structure Design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

3. Upgraded High-performance Fixed-focus Laser: No need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

4. Wide Compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support macbook system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

5. Precise Scale Lines Axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

6. Double Compression Spot Coupling Technology: Laser power is 10-11W, ultra-fine laser focus area is reduced to 0.08*0.15mm, high-density laser can easily cut 15-20mm thick wooden boards and 10-15mm thick black acrylic; it can directly engrave mirror stainless steel Metal, ceramic, glass, engraving & cutting speed is 40% higher than that of ordinary models.

7. Integral Screw Rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

8. New Laser with Knob: It is more convenient and quick to adjust the height of the laser.

9. Support Offline Engraving: A10 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

10. The laser Sintering Temperature is up to 1200℃

11. Emergency Stop Button: Yes

12. Stopper: Yes

13. Reset Switch: Yes

Specification:

Product Model: AtomStack A10 PRO
Engraving Size: Recommend Print Size 410*400mm
Engraving Material: Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate
Cutting Materials: Cardboard, Non-woven Fabric, Wood Board, Acrylic, Some Thin Plastic Board, Sponge
Overall Machine Power: 50W
Laser Output Optical Power: 10-11W
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.01mm
Focusing Mode: Fixed Focus Laser, No Need to Focus
Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Supported File Formats: NC, BMP, JPG, PNG, DXF, etc.
Data Transfer Method: USB Connection
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE FCC RoHS FDA PSE
