Price range: $984.21 through $1,193.64

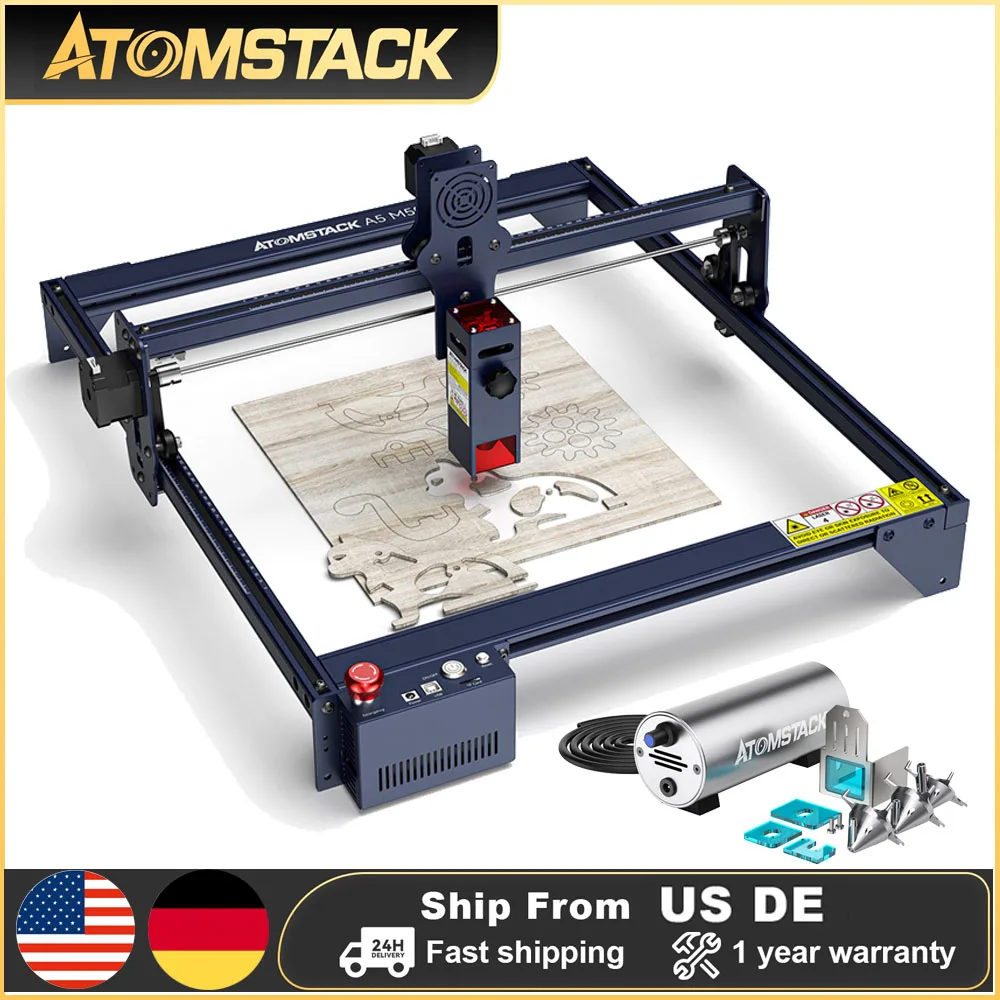

AtomStack A5 M50 Laser Engraver 5W DIY Engraving Cutting Machine for Wood Metal Leather
Specifications:
Product model:AtomStack A5 M50
Engraving size:410*400mm/16.14*15.75
Engraving material:wood bamboo cardboard plastic leather MDF slate lacquered metal mirror stainless steel;
Cutting material: cardboard non-woven fabric veneer acrylic some thin plastic board sponge MDF leather
Machine power:40W
Laser output optical power:5-5.5W
Laser wavelength:455±5nm
Engraving accuracy:0.01mm
Focusing method:Fixed-focus laser no focusing
Laser protective cover:There is a protective cover on the laser to protect the user’s eyes and there is no need to wear additional protective glasses. At the same time prevent pets from scratching the laser spot.
Operating software:LaserGRBL LightBurn support for Win XP/Win 7/Win 8/XP/Win 10 system.
Supported file formats:NC BMP JPG PNG DXF
Data transfer method:USB connection
Power supply:International standard power
Input: 100-240V AC 50/60Hz
Output: 12V 5A
Equipment net weight:3.426kg
Equipment size:570*600*270mm/22.44*23.62*10.63
Packing size:620*345*130mm/24.4*13.58*5.12
Certification:CE FCC RoHS FDA
Features:
1. Eye-protection flame-retardant filter panoramic glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles and you can clearly watch the laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame-retardant and safer to use.
2. Robust and easy-to-install structural design: The all-aluminum alloy anodized structural design makes the machine more robust and durable and at the same time improves the accuracy of engraving. The whole structure is designed for quick installation and the installation can be completed within 10-20 minutes.
3. Upgraded high-performance fixed-focus laser: it can be engraved without adjusting the focal length; the focal spot area of the new laser is 50% smaller than that of other ordinary lasers and it can take into account both precision engraving and high-energy cutting. At the same time the laser power of fixed-focus laser is more stable than that of zoom laser.
4. Extensive compatibility: The machine can be compatible with various mature engraving software such as for LaserGRBL LightBurn support for Win XP / Win 7 / Win 8 / XP / Win 10 and also support for Mac system (LightBurn) engraving file format support for NC BMP JPG PNG DXF etc.
5. Precision scale line axis: X-axis and Y-axis contain precision scale line which is convenient for you to carry out quick length measurement. The 410x400mm large-area engraving interval can meet your various engraving needs.
6. New upgraded compression laser: newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation focusing technology the optical power is 5-5.5W and the laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 15mm thick wooden boards and 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics.
7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepper motor and the screw rod are integrated which makes the laser movement more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9. Expandable engraving size: modular design of the body mechanism only need to replace the frame components you can get 410*850mm super large engraving size.
Packing list:
1 x X axis assembly
2 x Profile 57cm
2 x Profile 48cm
1 x Control box
3 x Support feet
1 x Laser goggles
1 x Laser
1 x 24V 2A power adapter
1 x Switching power cord
1 x USB cable
Step 1-5 installation package
1 x M5 Allen key
10 x Rolled strip
3 x Small wood chips
1 x Fixed focus lens
1 x M3 Allen key
1 x Brush
3 x Acrylic sheet
1 x Stainless steel backing plate for cutting
New Upgrded Compressed Spot
The newly upgraded compressed spot size is only 0.08*0.08mm,with greater energy density and more concentrated.
A5 M50 uses 30mm focal length
Longer effective laser energy range(compared to ordinary lasers)
A5 M50 Cuts Deeper
With 30mm focal length,the effective energy range is longer and cutting is deeper.
Can cut 15mm wood and black acrylic
Enhanced Metal Engraving Capability
Cleaner engraving marks,faster engraving speed
Fine Engraving
The double-compressed spot technology makes the laser spot down to 0.08mm to achieve finer image engraving.
Smart Limit Switch Design
Limit switches are installed on both X-axis and Y-axis,when the engraving machine stroke is at its maximum,the limit switch will be automatically triggered to protect the laser and avoid collisions.
Support Atomstack Control Terminal
Equipped with ATOMSTACK terminal interface,you can use the terminal directly through the interface,so as to realized offline engraving and mobile APP control.
