$6,066.99
Product Parameters

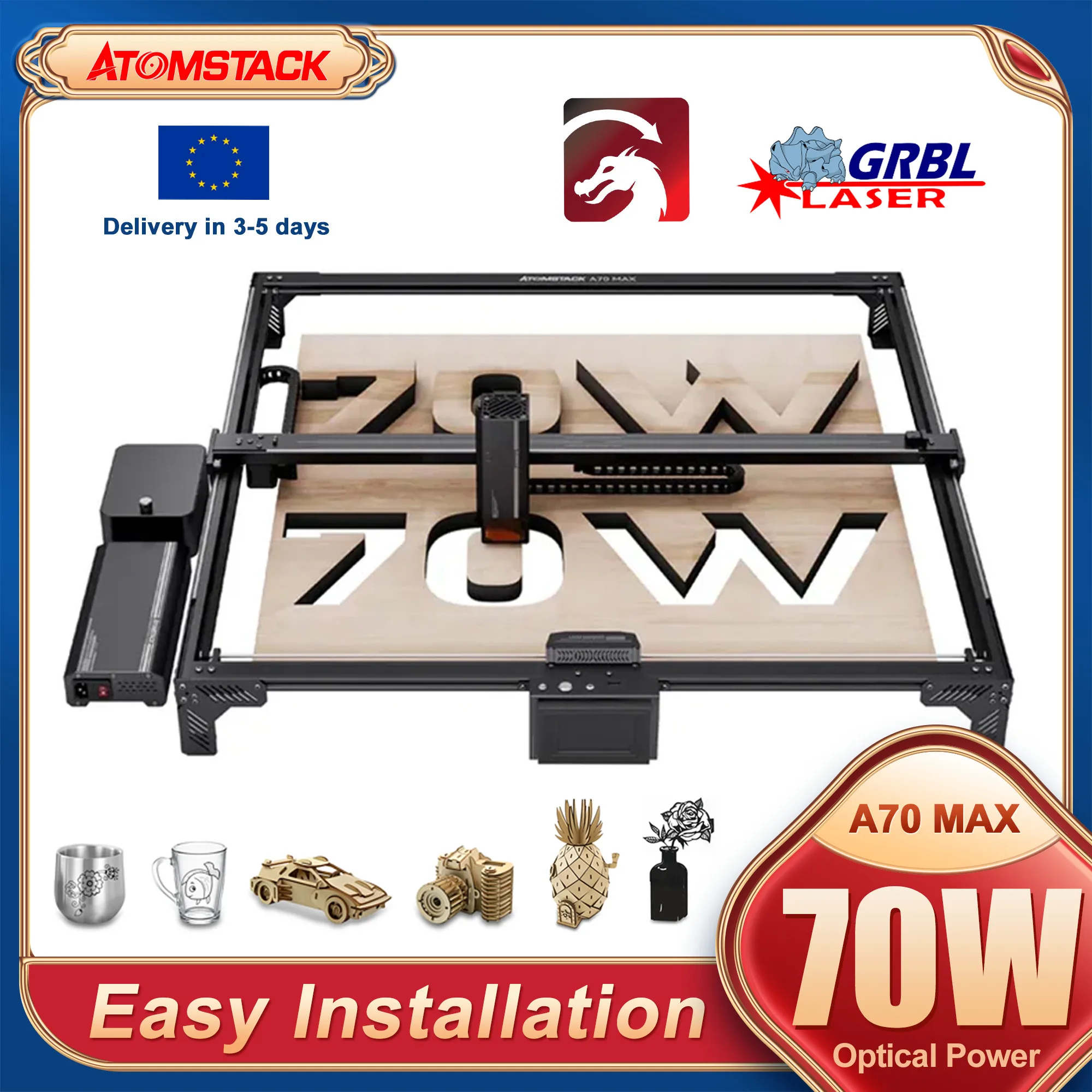

Brand : ATOMSTACK
Model : A70 MAX
Material : Aluminum alloy
Working Principle : Engraving / Cutting
Engraving Range : 850*800mm
Engraving Materials : Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate;
Cutting Materials : Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge;
Overall Machine Power : 360W
Laser Output Power : 70W/35W
Laser Wavelength : 455±5nm
Engraving Accuracy : 0.01mm
Maximum Speed : 400mm/s (24000mm/min)
Laser Spot : 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Focusing Method : Fixed Focus Laser, No Focus
Operating Software : LaserGRBL, LightBurn, AtomStack Studio
Support Formats : NC, BMP, JPG, PNG, DXF.
Upport Systems : IOS, Android, Windows, Mac
ConnectionMode : Type-C, Mobile WiFi, Touch screen
Input : 100-240V AC, 50/60HZ
Certification : CE,FCC,RoHS,FDA,PSE
Features:
➤ Powerful cutting force: capable of cutting 25mm black acrylic, 12mm MDF density board, 30mm pine board, 0.3mm stainless steel sheet
➤ Max version processing area: The most professional blue light laser cutting and engraving machine, standard 800*850mm large working area, frame can accommodate materials up to 1045*950mm with four support feet and fixed holes for stable operation on the workbench
➤ New motion structure: To ensure high-speed stable operation, the machine’s three axes adopt a new low center of gravity dual-axis guide rail structure, stable operation at high speed, quiet, suitable for heavy-duty engraving and cutting work
➤ Offline work: Product comes with a second-generation smart board and control screen, can work offline without a computer or phone
➤ Standard large flow air assist: Maximum 60L/min air assist ensures flawless cutting work, surface of the cut lines does not turn yellow, extends the life of the laser
➤ Multiple usage scenarios: can work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, billboards, metal marking, clothing design
➤ Quick accuracy maintenance: at a high-speed operation of 400mm/s, can maintain accuracy of 0.01mm
➤ Dual-mode focus adjustment: supports manual and automatic focus adjustment, completes focus adjustment within 8 seconds
➤ Automatic flame alarm: triggers an alarm and stops working when the wavelength points of the flame spot in the working area exceed
35%, accurate and fast
➤ Intelligent cooling system: opens the double-layer air guide hood air assist, automatically turns on air assist during cutting for better heat dissipation and cutting effects
➤ Power-off resume function: in case of power outage during creation, resumes unfinished creation when power is restored
Atomstack Maker APP is suitable for all models.
APP v1.1.7 is now available. Download address: https://atomstack.com/pages/atomstack-studio-software
