VEVOR 50W Laser Engraving Machine CO2 Laser Tube Cutting Machine USB Port Engraver Cutter Specifical For Acrylic/Wood/Leather

SKU : 1005007662860037

Price range: $3,611.82 through $4,558.98

  • Hign-concerned Chemical: None
  • Engraving Area: Other
  • Laser Power: Other
  • Origin: Mainland China
  • Brand Name: VEVOR
  • Laser power: 50W
  • Laser type: Hermetic CO2 glass tube
  • Working area: 300mm X 500mm
  • Max moving speed: 500mm/s
  • Control configuration: Top Wisdom
  • Data transfer interface: USB
  • System environment: WINDOWS 2000/WINDOWS XP/ WIN7/VISTA
  • Cooling way: Water Cooling
  • Packing: Plywood case
  • Sloping Engraving: Slope can be designed discretionarily
  • Operating Temperature: 41 – 104 Fahrenheit/ 5 – 40 Celsius
  • Locating Precision: AC220+/-10% 50HZ
  • Min. Character Size:Character: 2 x 2 mm, Letter: 1 x 1 mm
  • Machine Dimension: 1020 X650 X630 mm
  • Cutting Thickness: 0 -10 mm
Warranty: We will provide a one-year warranty and we will solve all your after-sales problems!
50W Co2 Laser Engraving Cutting Machine
The CNC laser machine is equipped with a precision 50W water cooled CO2 laser that will engrave and cut various materials. With the Cylinder Rotary Attachment, you can engrave any cylindrical object, such as a cup, brush pot, musical instrument, and so on. It supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on. Equipped with TopWisdom Control System for CorelDraw/AutoCAD and other advanced software. Compatible with WIN7, Vista, XP, and WIN2000.
Note: This machine does not have Z-axis lifting and auto-focusing functions. And all laser engraver machine cannot engrave and cut metal.

  • Product Parameters

  • Excellent Laser Tube

  • Strong Compatibility

  • Digital Display

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

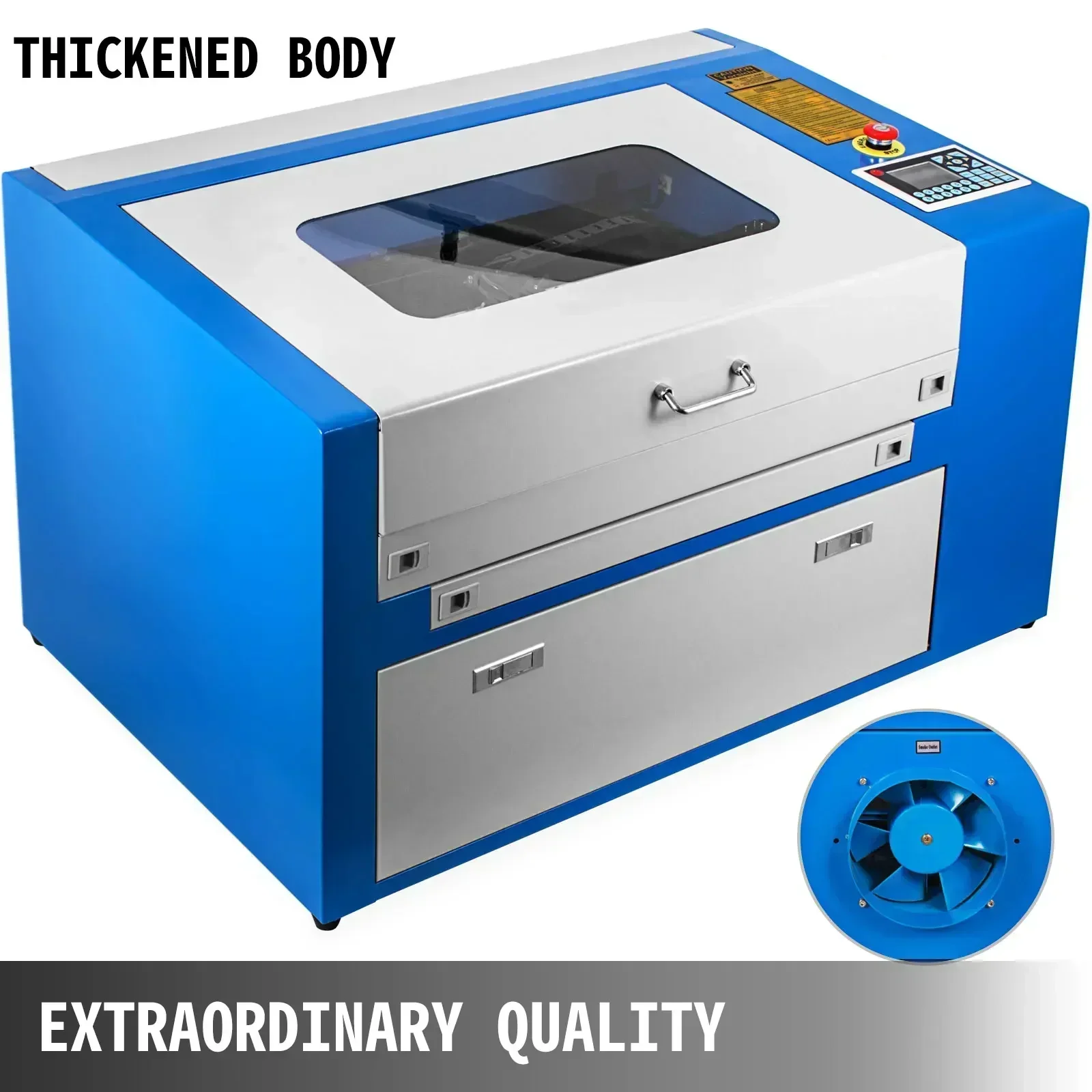

Extraordinary Quality
Reinforced and thickened machine body make the laser cutter absolutely to be a safer and longer lifetime. The red dot pointer provides a visible means of determining engraving location.

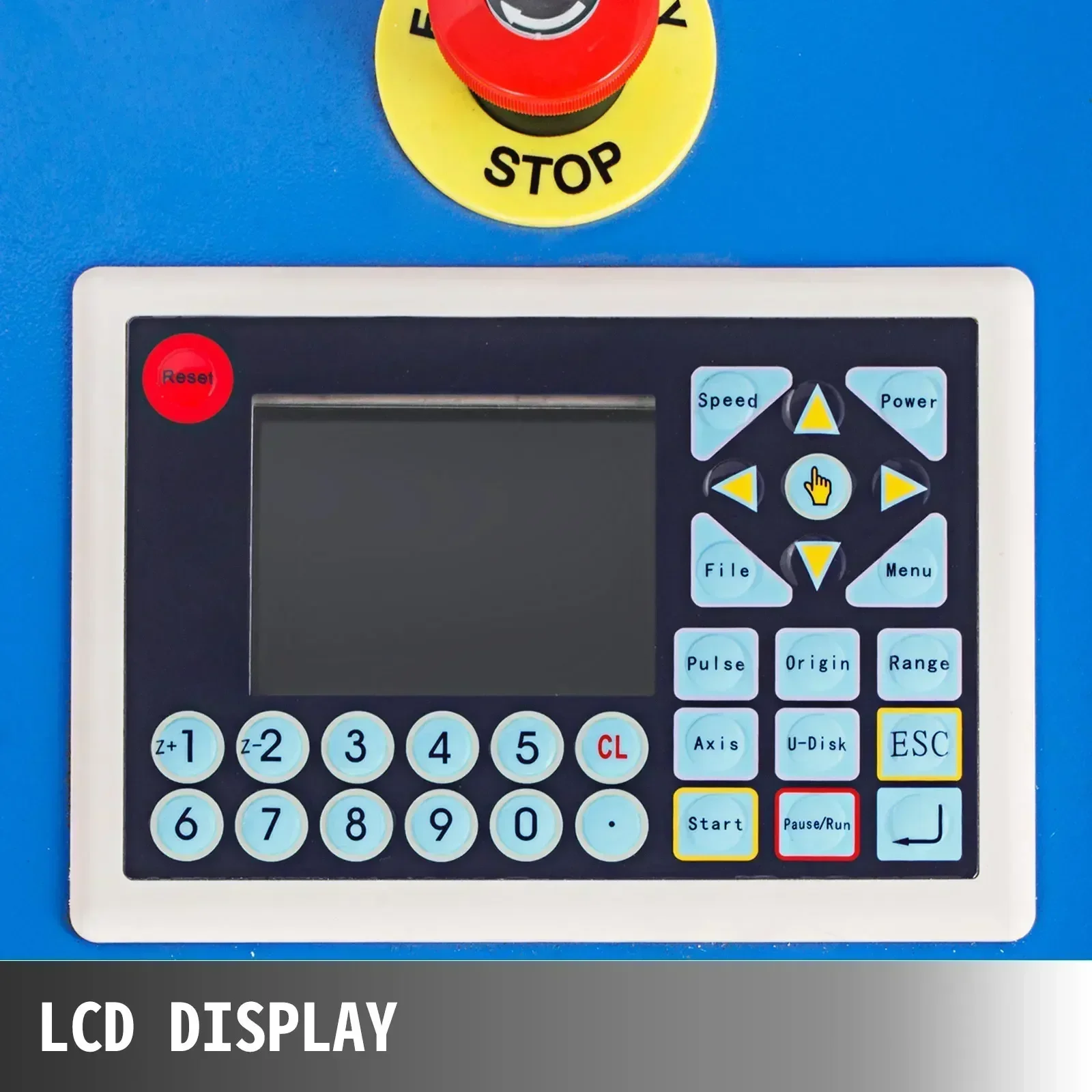

LCD Display
The laser cutter and engraver machine uses an intuitive control panel. Adjustable Speed and Power. Set speed, power, and more controls directly from the laser.

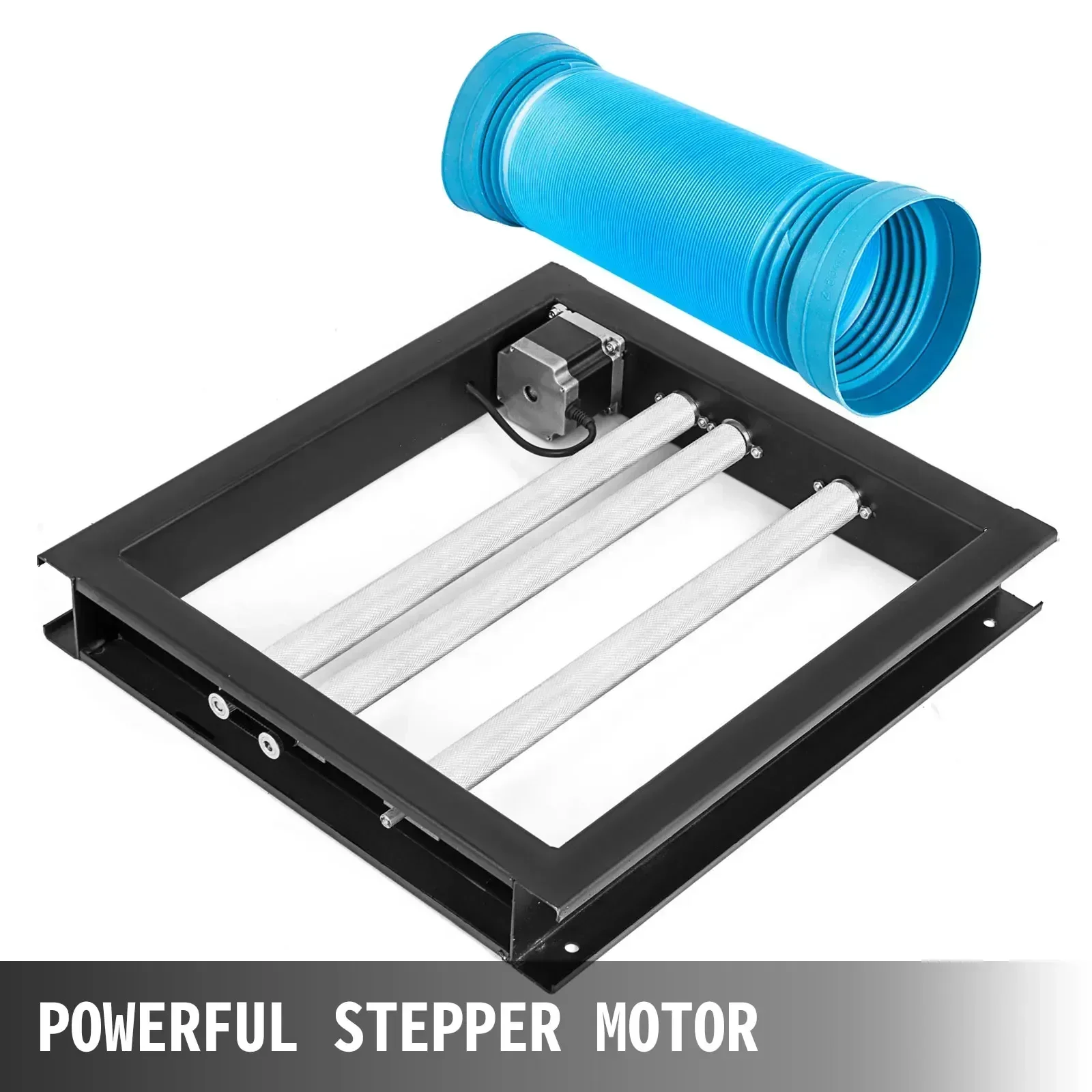

Powerful Stepper Motor
The motor has the characteristics of high output torque and high accuracy. The small jitter during the cutting process makes the cutting surface smoother. Compared with other products, the engraving machine has a longer service life.
High-quality Laser Tube
The laser tube possesses excellent heat resistance & high-temperature resistance, which brings the small light spot and intense penetration. The stable beam provides fast cutting speed.
Complete Accessories
All the accessories you need has been prepared for you, like the USB cable, CD, power line, wrench, a set of screwdriver tools, etc.

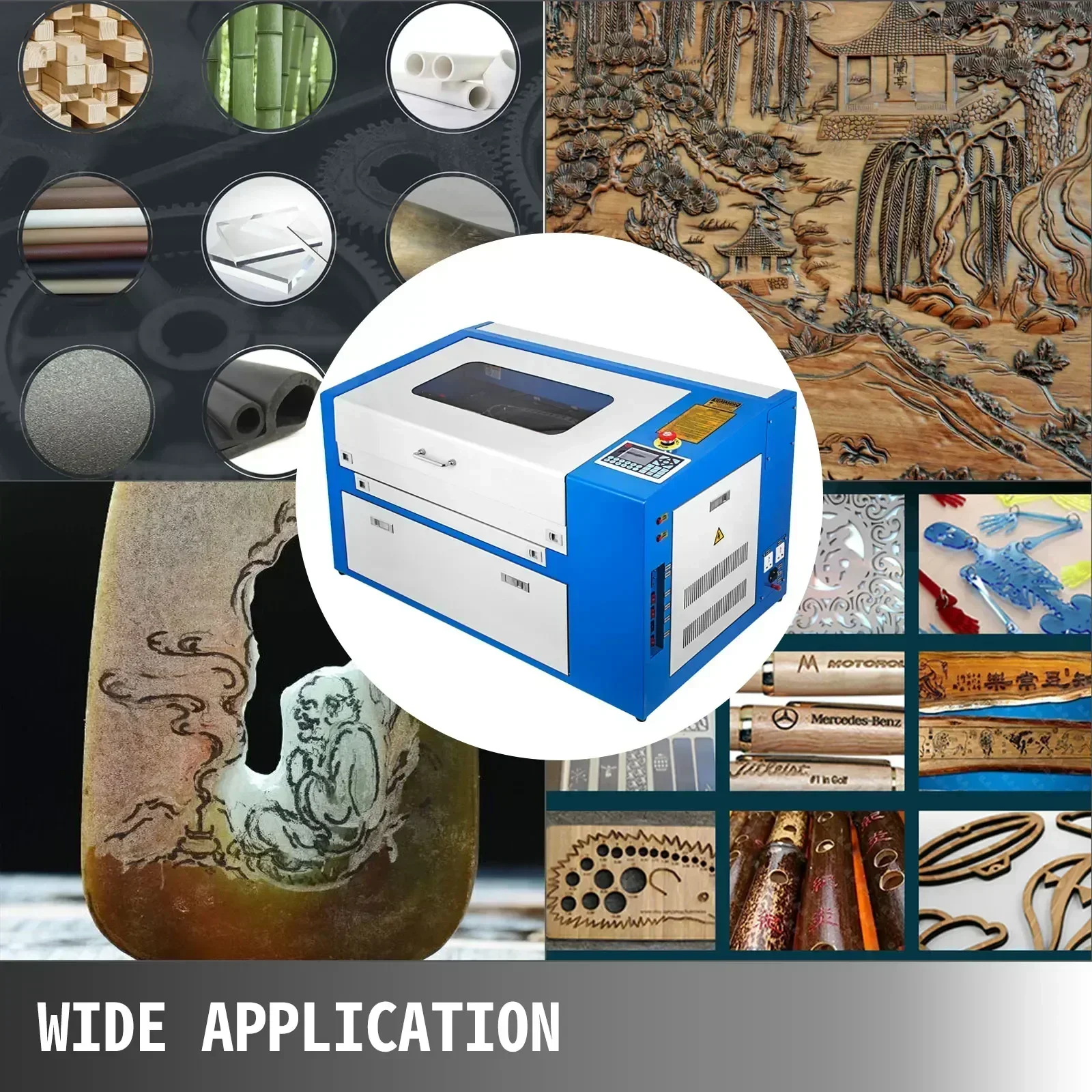

Wide Application
This laser engraver for wood and metal machine is widely used in woodworking, textile cutting, industrial prototyping and marking, sign making, carving, plastic manufacturing, and so on. All laser engraving machines are forbidden to engraving and cutting metal.
Specifications

  • Laser Power: 50W

  • Laser Type: Hermetic CO2 Glass Tube

  • Power Supply: AC 220 ±10% 50HZ / AC 110 ± 10% 50HZ

  • Working Area: 20" x 12" / 300 mm x 500 mm

  • Max Moving Speed: 500 mm/s

  • Locating Precision: <0.01 mm

  • Min Shaping Character: Character: 0.08" x 0.08" / 2 x 2 mm, Letter: 0.04" x 0.04" / 1 x 1 mm

  • Operating Temperature: 5℃-40 ℃ / 41℉-104℉

  • Resolution Ratio: ≤4500 dpi

  • Control Configuration: DSP

  • Data Transfer Interface: USB(Offline)

  • Worktable: DC-G350D – Up & Down Table

  • System Environment: WINDOWS 2000 / WINDOWS XP / WIN7 / VISTA

  • Cooling Way: Water Cooling and Protection System

  • Graphic Format Supported: The Files which CorelDraw, Photoshop, AutoCAD can identify (BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT, CLK, DEX, CSL, CMX, AI, WPG, WMF, EMF, CGM, SVG, SVGZ, PCT, FMV, GEM, CMX)

  • Compatible Software: RDdraw (also support CorelDraw & AutoCAD but Not Included in this item.)

  • Cutting Thickness: 0-4" / 0-10 mm (depends on different materials)

  • Color Separation: Separation of cutting up to 256 colors

  • Sloping Engraving: Yes, the slope can be designed discretionarily

  • Cuts off the Water Supply the Protection: Yes

  • Packing: Plywood Case

  • Parts: Cylinder Rotary Attachment

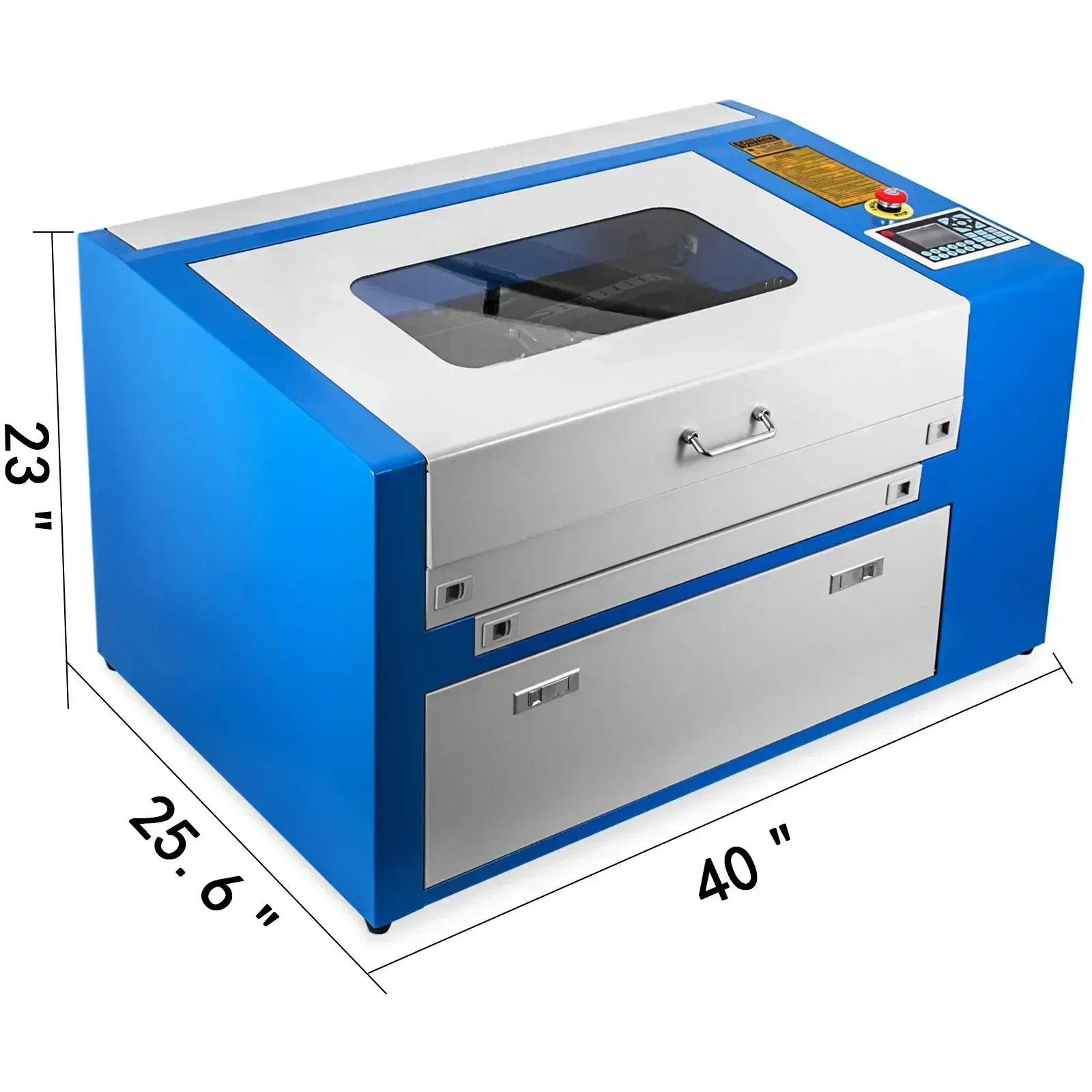

  • Machine Dimension: 40.16" x 25.6" x 24.8" / 1020 × 650 × 630 mm

  • Net Weight: 143.3 lbs / 65 kg

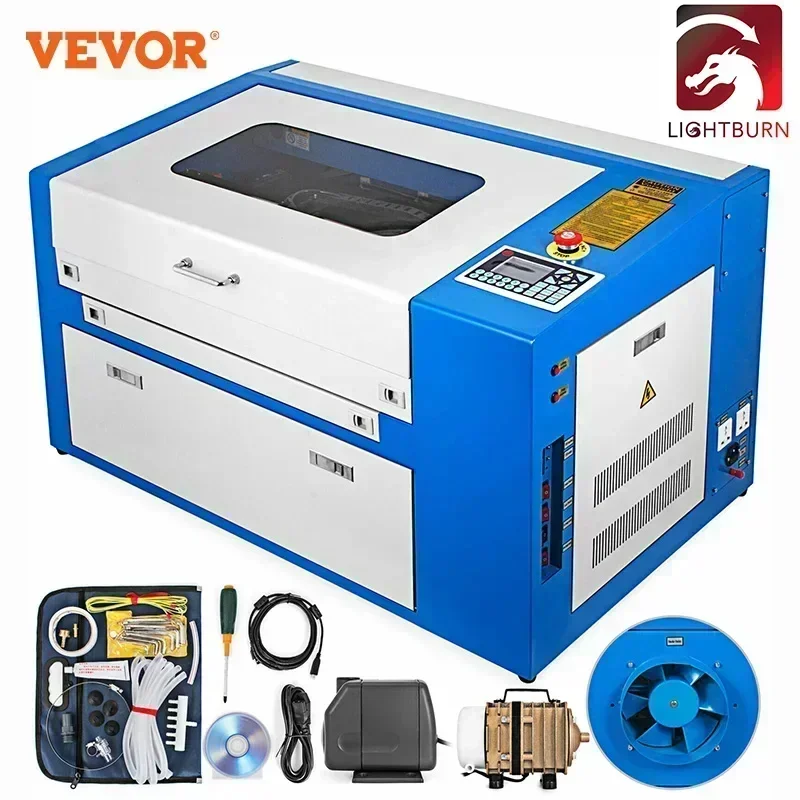

Package Content

  • 1 x Main Body

  • 1 x Cylinder Rotary Attachment

  • 1 x Air Pump

  • 1 x Water Pump

  • 1 x Exhaust Fan

  • 1 x Smoke Pipe

  • 1 x Laser Tube

  • 1 x USB Cable

  • 1 x CD

  • 1 x Power Line (we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world.)

  • 1 x Wrench

  • 1 x Key

  • 1 x Manual/Accessory Bag

Features & Details

  • 【PRODUCT PARAMETERS】 – Laser power: 50W; Working area: 300 mm x 500 mm; Max moving speed: 500 mm/s; Locating precision: <0.01 mm; Min shaping character: Character: 2 x 2 mm, Letter: 1 x 1 mm; Resolution ratio: ≤4500 dpi.

  • 【EXCELLENT LASER TUBE】 – The high-quality 50W laser tube features a small light spot and strong penetration characteristics. The strong power provides a stable output and smooth, fast, and precise engraving and cutting.

  • 【STRONG COMPATIBILITY】- The laser engraver supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF. Equipped with the TopWisdom control system for CorelDraw / AutoCAD and other advanced software. Compatible with WIN7, Vista, XP, and WIN2000.

  • 【DIGITAL DISPLAY】- Adjustable Speed and Power. According to your different needs, the CNC machine adopts the intuitive control panel, which can directly set speed, power, and more controls.

  • 【VARIOUS APPLICATION】 – This laser engraving machine is suitable for woodworking, textile cutting, industrial prototyping, industrial marking, sign making, building model, professional advertising, plastic manufacturing, etc.
